Urban is equipped with 500W Bafang H500 Integrated Rear Drive Hub Motor, the seat and handlebar are designed to be adjustable, and the frame is designed to be extremely low, this bike fits perfectly with the height of all your family members.
WHAT'S IN THE PACKAGE
Delivered with 85% assembled:
Ebike & battery;
Original charger & adapator;
Front tire & quick release;
Pedals, saddle & seat post;
Fenders & rear rack;
Screws and tools for assembly.
1/2 - Electronic System
500W Hub Motor (BAFANG)
Bafang powerful and efficient H500 Integrated Rear Drive Hub Motor, With 500W dependable power offers strong support where needed. The one-piece design of the wheel, rim, and body makes the Urban ride more stable, and rough road conditions or hard riding will not deform the wheels at all.
2/2 - Electronic System
48V 11.6Ah Battery
Urban has an embedded removable battery. The built-in 11.6Ah battery efficiently improves the range, stability and safety, which can last up to 25 miles with PAS mode on a single charge.
Throtte Mode Range: 20 - 22 Miles
PAS Mode Range: 24 - 26 Miles
- 1. MOTOR
- 2. BATTERY
Size and Geometry
Recommended Rider Height: 5'1" - 6'2" or 155CM - 190CM
Ⓐ - Total Length: 66.9" or 170CM
Ⓑ - Wheel Base: 44.5" or 113CM
Ⓒ - Seat Height: 30.3" - 39.0" or 77CM - 99CM
Ⓓ - Handlebar Height: 44.9" - 50.8" or 114CM - 129CM
Ⓔ - Rim Diameter: 16.5" or 42CM
Ⓕ - Standover: 16.1" or 41CM
Ⓖ - Reach Distance: 15.4" or 39CM
Ⓗ - Chain Stay Length: 16.5" or 42CM
Ⓘ - Seat Angle: 72.8°
Ⓙ - Seat Tube Length: 14.6" or 37CM
Ⓚ - Bike Width: 23.2" or 59CM
Ⓛ - Top Tube Length: 24.4" or 62CM
To ensure uninterrupted suppluying and shipping, some parts may differ from those listed. Rest assured, our engineers rigorously test each component to guarantee quality and compatibility.
Class 3 ebike with throttle and pedal asssit functions.
77.2lbs in total with the battery.
Range per Charge
20 - 22 miles on throttle mode. 24 - 26 miles on pas mode.
Recomend rider weight around 220lbs.
500W DC hub motor(BAFANG), cassette. Max torque: 65N.M.
48V 11.6AH (556WH) lithium battery; anti-fall battery dual locks.
48V, 18 ± 1A; 9MOS.
54.6V ~ 2A smart charger; input 100-240V 50/60HZ.
2.4" portrait display(S830), IP65 waterproof.

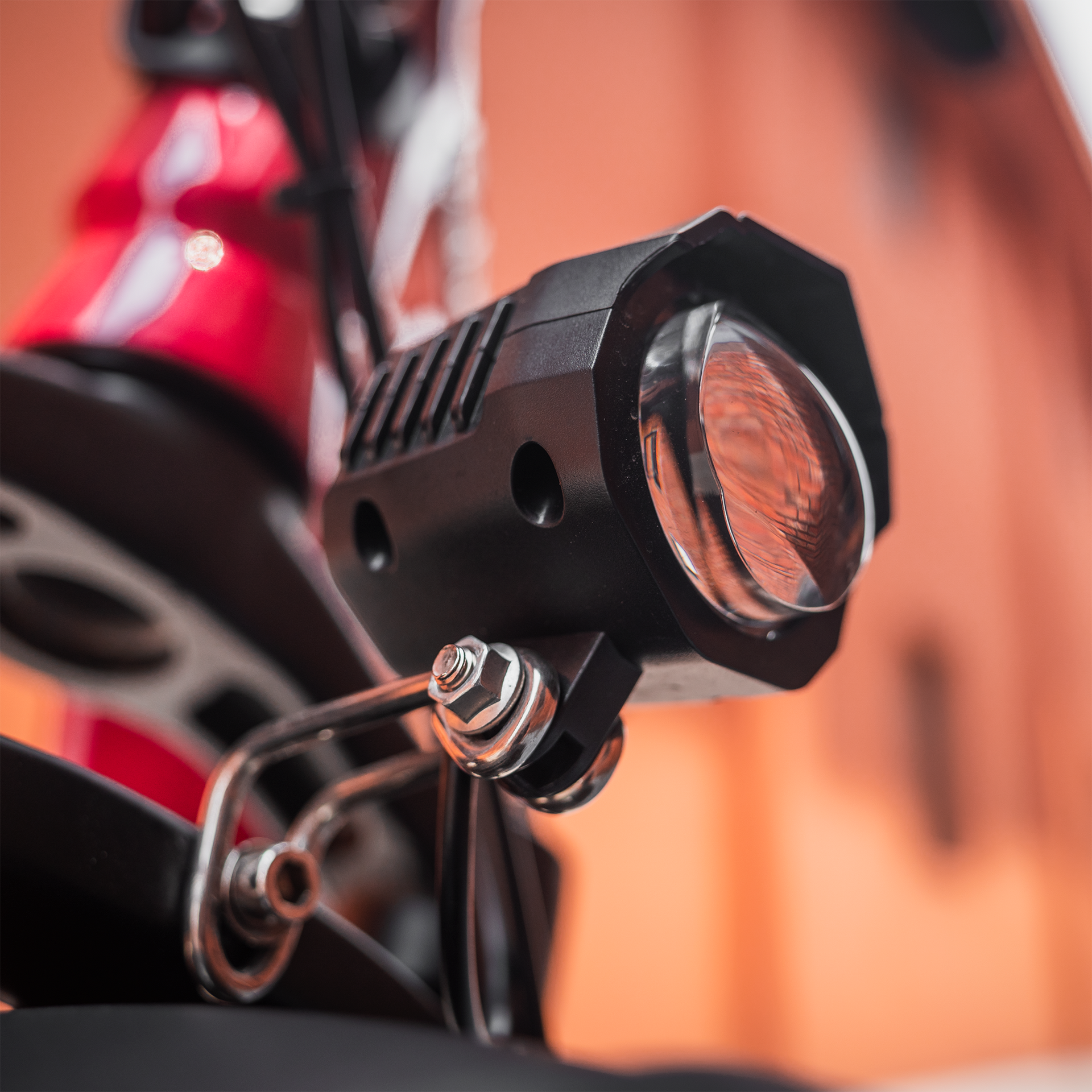

Front light 48V LED light; rear intergrated brake lights.
Water resistant connectors and wiring harness.
6061 aluminum; frame size: 20" * 15".
160mm front and rear mechanical disc brakes.
Aluminum alloy comfort grip levers with motor cutoff switch.
20" * 4" CST tires; tire pressure marked on sidewall.
Mechanical suspension alloy fork, adjustable.
48T * 170MM; single-sided chainring guard.
Comfort rubber ergo grips.
Wellgo(B087B) aluminum pedals with reflectors, polymer bearing.
Intergrated threadless headset.
Intergrated rear rack.
Aluminum leg with durable plastic cover, adjustable.
Snow tire fenders.
Comfort leather saddle.
Aluminum 36H spoke wheel.
Aluminum seapost with clamp.
Integrated electric horn.
