Eahoras APUS 2023
ABOUT APUS 2023
Sporty, smart and futuristic. APUS 2023 elevates your journey with the upgraded 750W motor. Larger 20Ah battery ensures extended range. Carbon frame design and all advanced features combine speed, efficiency, and style. Get ready to transform the way you move!
WHAT'S IN THE PACKAGE
Delivered with 85% assembled:
Ebike & battery;
Original charger & adapator;
Front tire & quick release;
Frame built-in headlight;
Pedals, saddle & seat post;
Screws and tools for assembly.
1/3 - Electronic System
Upgraded 750W Motor
With a formidable 750 Watt rear-drive motor, you can boldly traverse any terrain. Its unrivaled power ensures that you are never left wanting. Moreover, with the added benefit of high torque, your efforts will remain preserved. Leverage all your control over the power delivery with the seamless inclusion of 7-speed gears.
Max Torque: 75N.m
2/3 - Electronic System

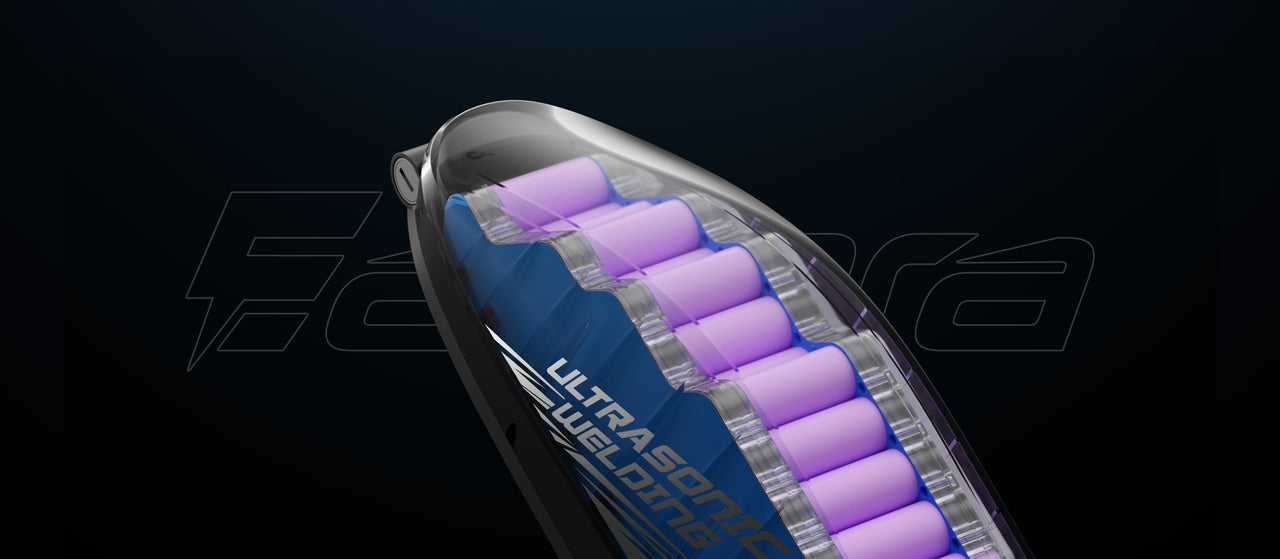

48V 20Ah Battery
Utilizing the innovative aluminum wire welding technique and incorporating a sizable 20Ah battery, APUS 2023 has effectively achieved substantially increased power output while minimizing energy consumption.
Throtte Mode Range: 35 - 40 Miles
PAS Mode Range: 70 - 79 Miles
3/3 - Electronic System
YL-81F LCD Display
Effortlessly monitor your cycling progress and bike condition with the intuitive YL81F display. Boasting a vibrant color screen, this high-performance device displays key parameters such as speed, battery level, and mileage. With its advanced functionality, you can effortlessly switch between five pedal assist levels, full-speed throttle, and cruise control modes, giving you complete control over your ride.
- 1. MOTOR
- 2. BATTERY
- 3. Display
Size and Geometry
Recommended Rider Height: 5'7" - 6'4" or 170CM - 195CM
Ⓐ - Total Length: 68.5" or 174CM
Ⓑ - Wheel Base: 42.5" or 108CM
Ⓒ - Seat Height: 33.5"-39.4" or 85CM-100CM
Ⓓ - Handlebar Height: 39.8" or 101CM
Ⓔ - Rim Diameter: 24" or 57.5CM
Ⓕ - Standover: 31.5" or 80CM
Ⓖ - Reach Distance: 17.3" or 44CM
Ⓗ - Chain Stay Length: 16.7" or 42.5CM
Ⓘ - Seat Angle: 66.8°
Ⓙ - Seat Tube Length: 16.5" or 42CM
Ⓚ - Bike Width: 25.9" or 66CM
Ⓛ - Top Tube Length: 22.8" or 58CM
To ensure uninterrupted suppluying and shipping, some parts may differ from those listed. Rest assured, our engineers rigorously test each component to guarantee quality and compatibility.
Class 3 ebike with throttle and pedal asssit functions.
50.1lbs in total with the battery.
Range per Charge
35 - 37 miles on throttle mode. 70 - 73 miles on pas mode.
Recomend rider weight within 220lbs.

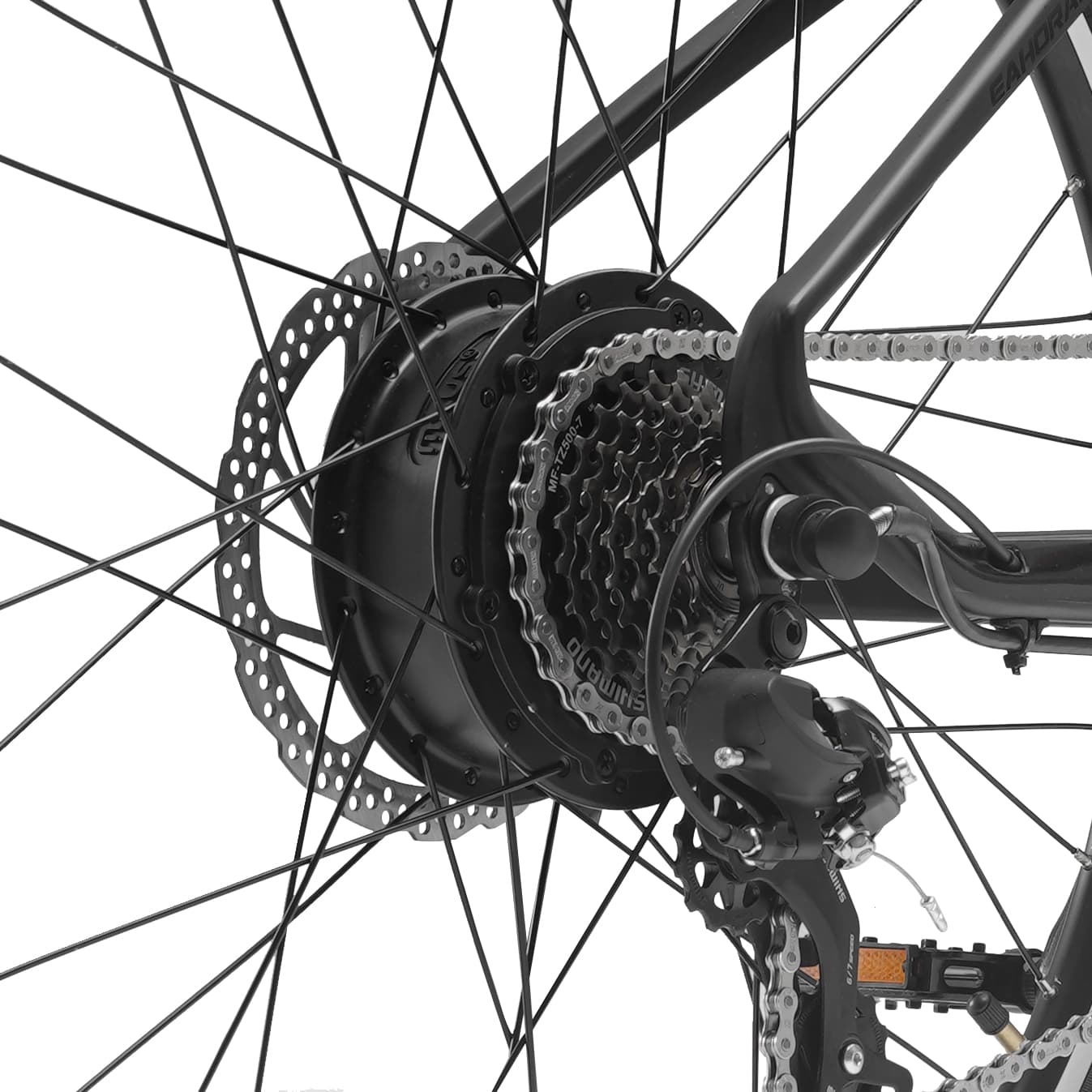

750W DC hub motor, cassette; Max torque: 75N.M.
48V 20AH (960WH) lithium battery; Intergrated LED light; transparent battery case.
48V, 18 ± 0.5A; 6MOS.
54.6V ~ 2A smart charger; input 100-240V 50/60HZ.
4" portrait color display(YL-81F), IP65 Waterproof; brightness: 100CD/M2
Integrated inlaid headlight.
Water resistant connectors and wiring harness.
Carbon filber frame; frame size 26" * 18".

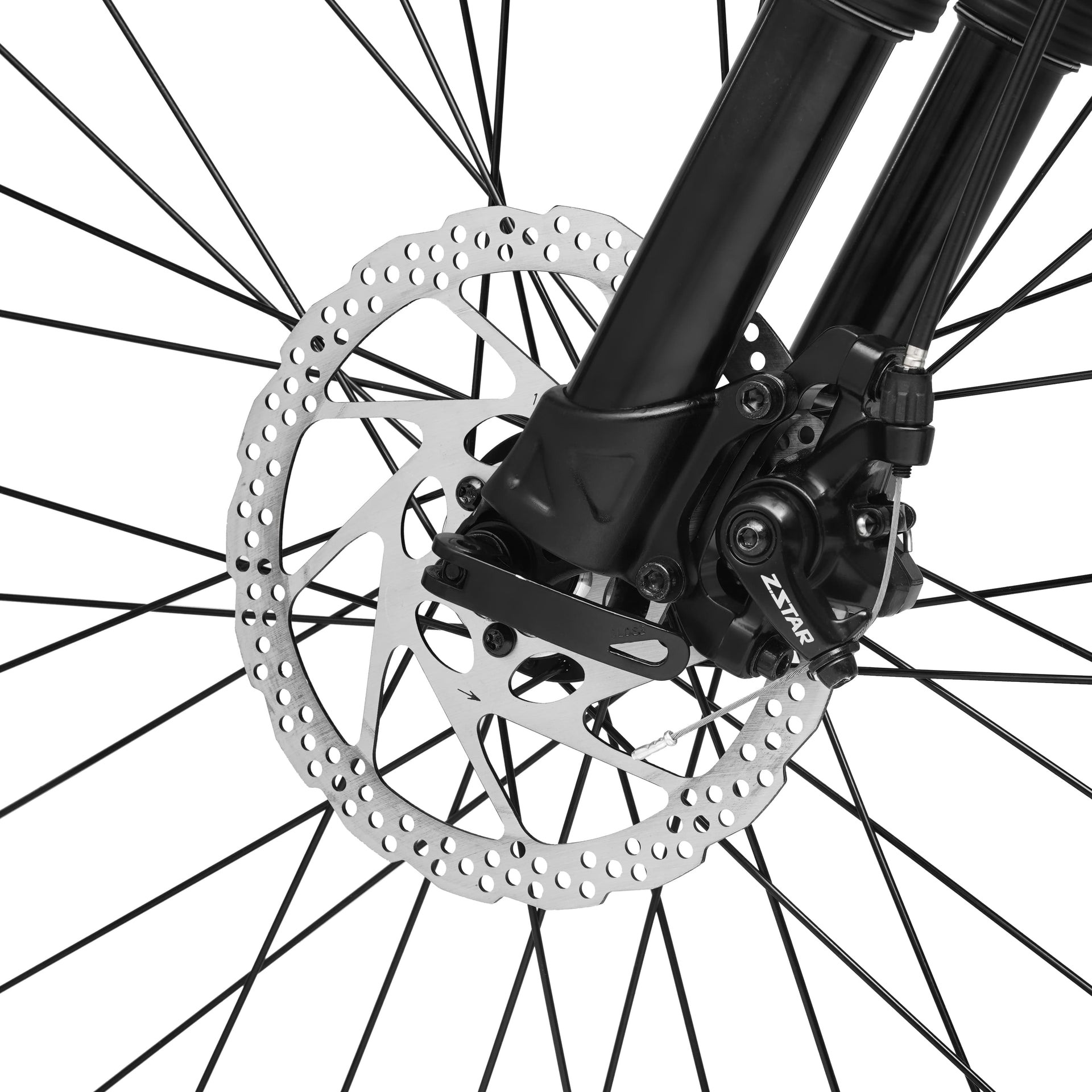

180mm front and rear mechanical disc brakes.
Aluminum alloy comfort grip levers with motor cutoff switch.

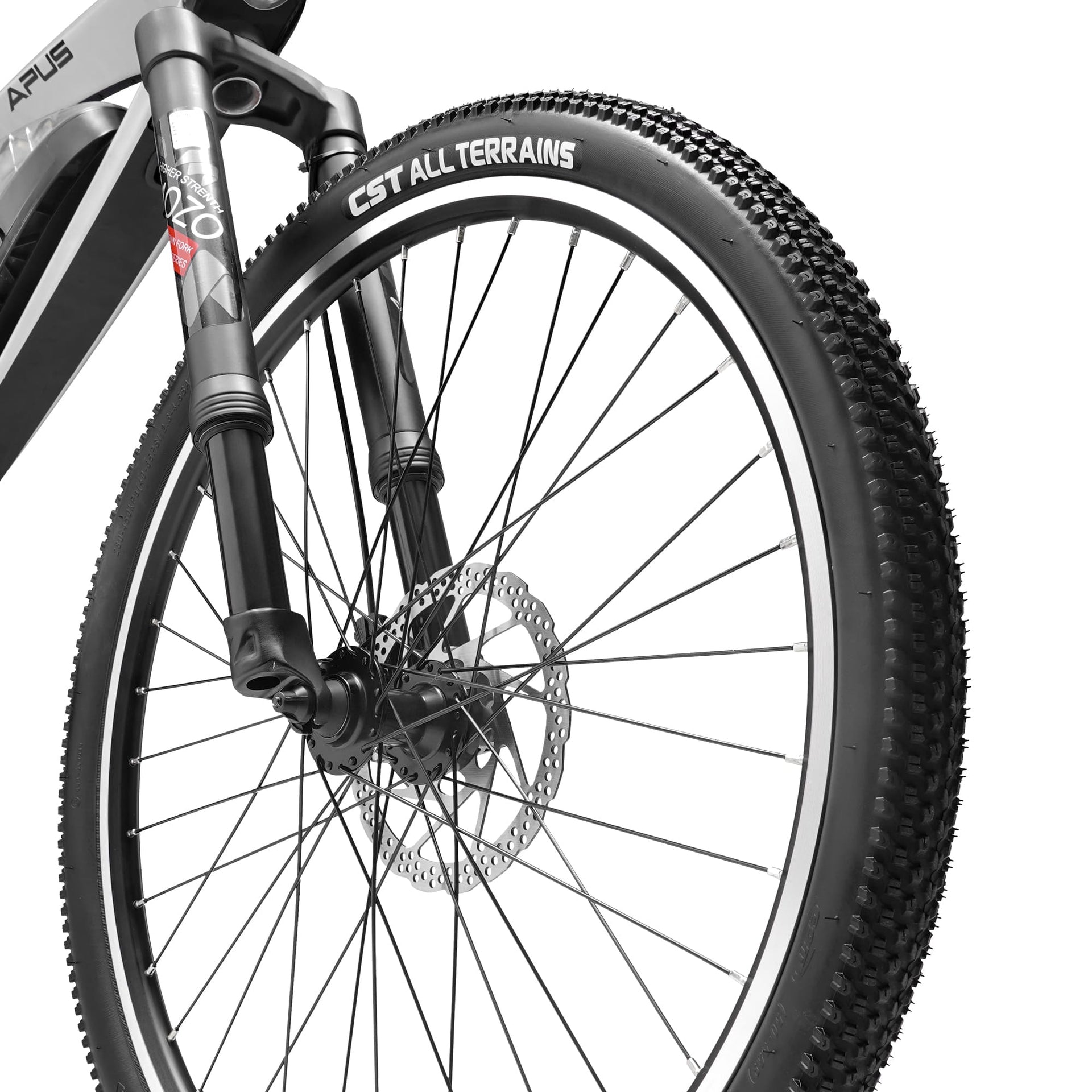

26" * 1.95" tires; tire pressure marked on sidewall
Rigid aluminum alloy fork.
38T * 170MM, CNC.
Shimano (SL-TX50-7R) 7-speed.
Shimano (RD-TY300) 7-speed.
Comfort rubber ergo grips.

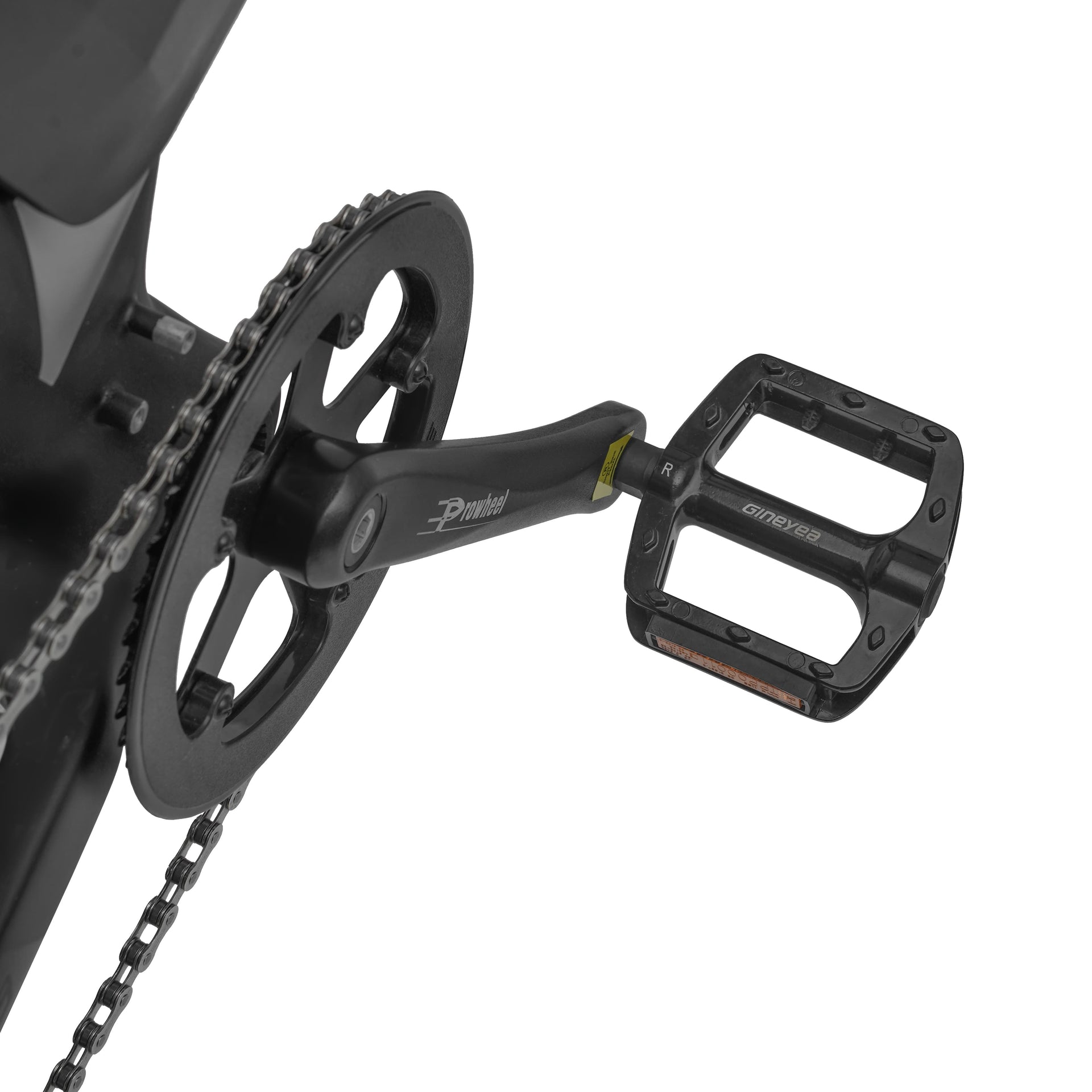

Wellgo (B087B) aluminum pedals with reflectors, polymer bearing.
Intergrated threadless headset.
Aluminum leg with durable plastic cover, adjustable.

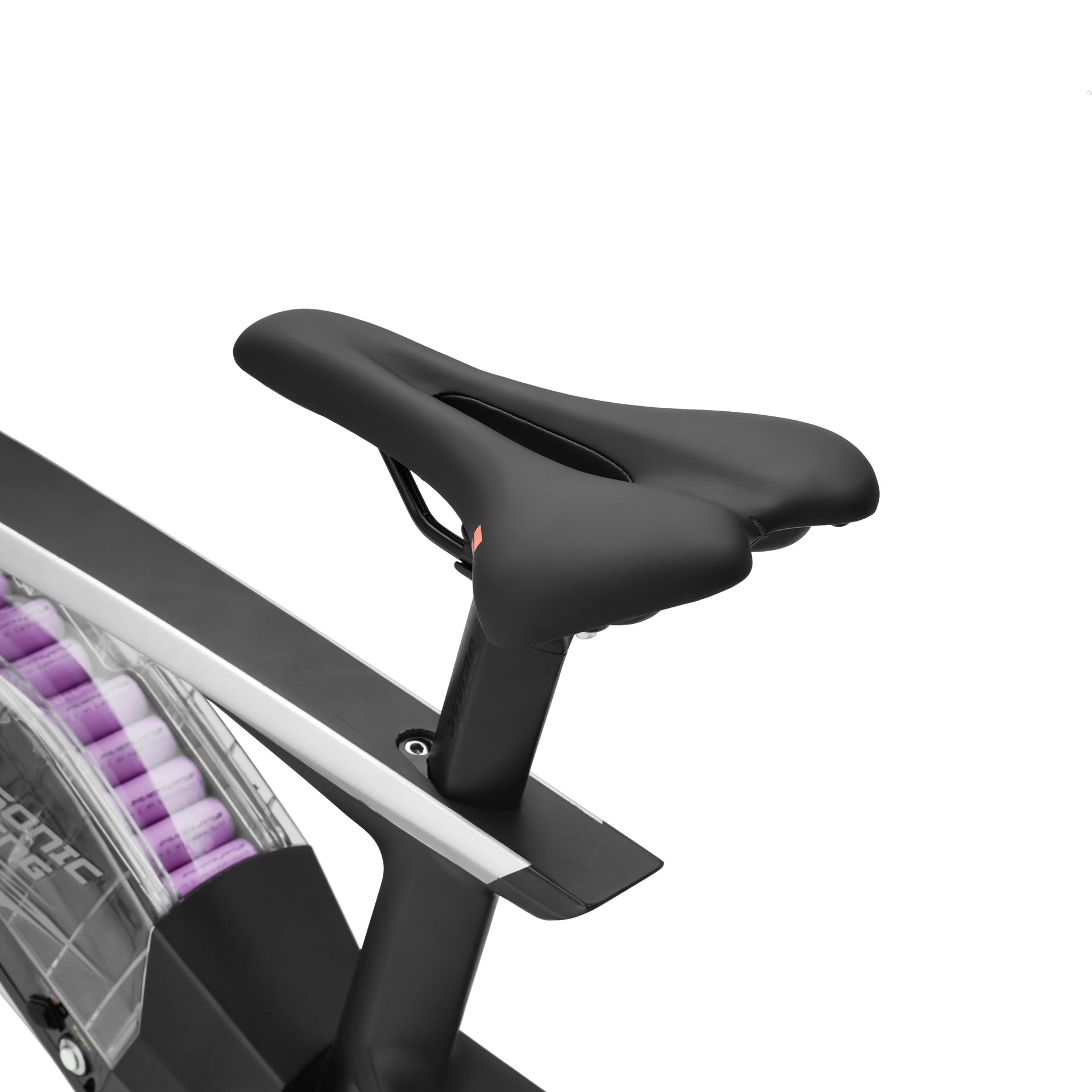

Comfort leather saddle.
Aluminum 36H spoke wheel.
Aluminum seapost with clamp.
