Eahora ACE

$3,799.99
$3,799.99 $3,999.00
Ride First, Pay Later. 4 interest-free payments of $949.99 with
Color Black
Color
In stock now, ships within 1-2 Days.

ABOUT ACE

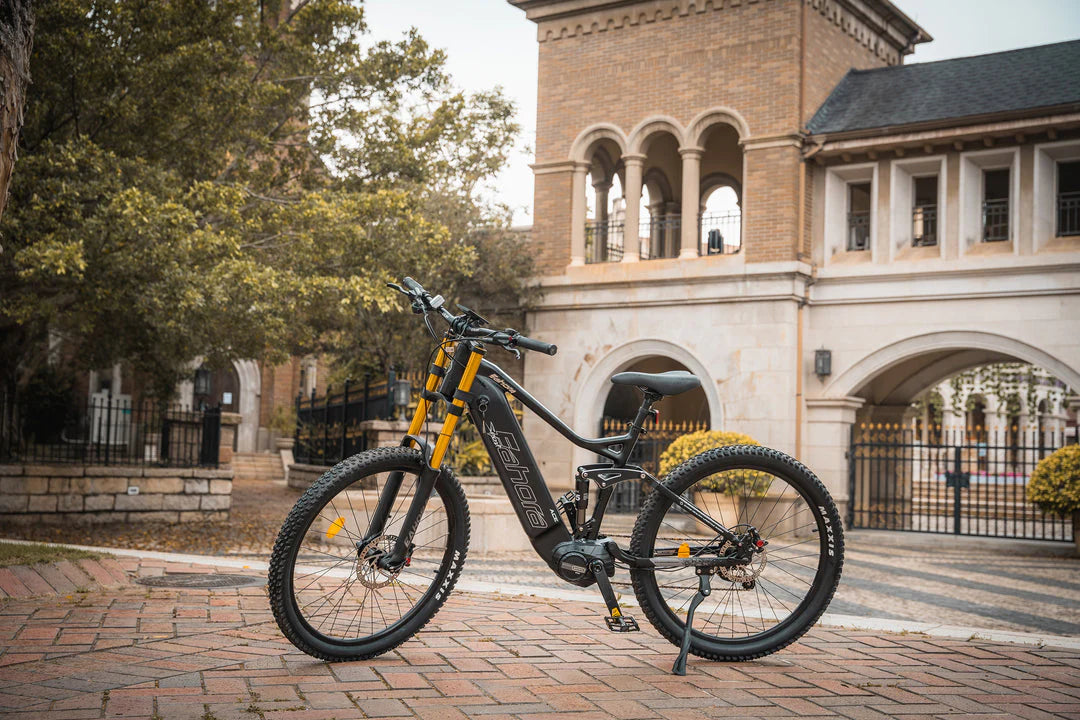

Eahora ACE is an efficient mid-drive electric mountain bike with high-performance Bafang M600 motor and 140MM travel hydraulic suspension fork. It provides better balance and weight distribution, which has good handling and stability can help you tackle challenging terrain with more confidence.

WHAT'S IN THE PACKAGE

Delivered with 85% assembled:
Ebike & battery;
Original charger & adapator;
Front tire & quick release;
Headlight;
Pedals, saddle & seat post;
Product manual;
Screws and tools for assembly.

OWNER Manuals

ACE User Manual.PDF
Assembly Video(Youtube)
Display manual.PDF

  • 1/2 - Electronic System

    500W Mid-Drive Motor(BAFANG)

    Featured with a max torque of 120 N/m, ACE has an excellent performance on climbing and a longer life expectancy. The mid drive motor can help you conquer any terrain easily. Easily suffice your daily commute and adventurous riding.

    Max Torque: 120N.m

    Gradeability: 30°

  • 2/2 - Electronic System

    48V 16Ah Battery

    ACE has an embedded removable battery. The built-in 16Ah battery efficiently improves the range, stability and safety, which can last up at least 40 miles with pedal-assist on a single charge.

    Throtte Mode Range: none

    PAS Mode Range: 43 - 50 Miles

  • 1. MOTOR
  • 2. BATTERY

MAXXIS 27.5" TIRES

Tires are the essential point of contact between your bike and the road. Eahora works to ensure that the tires are always offering excellent braking and puncture-proof performance. The 27.5*2.8 Maxxis all-terrain tires are the best guardian in your riding, offering strong grip and traction on any terrain.

COMFORTABLE LEATHER SADDLE

High-density memory foam will keep you comfy all day long. The special foam layer of the saddle frees your hips and ensures amazing comfort when riding. 100% waterproof design makes outdoor adventures fearless.

BAFANG DISPLAY

ACE owns a high-contrast LCD screen which enables you to read all essential riding metrics at a glance. You can read battery capacity, distance traveled, speed, time and pedal assist level on the speedometer in direct sunlight.

HYDRAULIC DISC BRAKES

ACE has 180mm front, 160mm rear hydraulic brakes, providing better braking performance and durability. They are powerful enough to handle industrial applications that require frequent start-and-stop cycles.

FULL SUSPENSION

ACE adopts a strong four-bar linkage suspension and coil suspension-- air double shoulder shock absorber and efficient rear suspension, absorbing any bumps on the way down the trail. Even in the most challenging terrains and weather conditions, ACE guarantees your safety and offers you an easy and smooth riding experience.

SHIMANO 9 SPEED GEAR SHIFT SYSTEM

ACE is equipped with Shimano 9 speed gear shift system, which offers you more choice while riding in all kinds of conditions. Along with the pedal-assist system, you can find any speed that suits you. Using this system accurately can increase the range of a single charge by up to 15%.

Size and Geometry

Recommended Rider Height: 5'9" - 6'4" or 175CM - 195CM

Ⓐ - Total Length: 74.8" or 190CM

Ⓑ - Wheel Base: 46.4" or 118CM

Ⓒ - Seat Height: 36.6" - 41.7" or 93CM - 106CM

Ⓓ - Handlebar Height: 43.3" or 110CM

Ⓔ - Rim Diameter: 23.5" or 60CM

Ⓕ - Standover: 28.0" - 31.5" or 71CM - 80CM

Ⓖ - Reach Distance: 16.1" or 41CM

Ⓗ - Chain Stay Length: 19.7" or 500MM

Ⓘ - Seat Angle: 66.8°

Ⓙ - Seat Tube Length: 15.3" or 39CM

Ⓚ - Bike Width: 28.3" or 72CM

Ⓛ - Top Tube Length: 24.0" or 61CM

Technical Specifications

To ensure uninterrupted suppluying and shipping, some parts may differ from those listed. Rest assured, our engineers rigorously test each component to guarantee quality and compatibility.

Bike Class

Class 3 ebike with pedal asssit only.

Bike Weight

62.8lbs in total with the battery.

Range per Charge

43 - 50 miles on pas mode.

Payload Capacity

Recomend rider weight within 220lbs.

ELECTRONIC SYSTEM

Motor

BAFANG(M600) 500W DC mid-drive motor with torque sensor(SR.SD021.01); Max torque: 120N.M.

Battery

48V 16AH 768WH lithium battery; 18-month warranty; Anti-fall battery dual locks.

Controller

BAFANG(Matching M600) 48V 500W.

Charger

54.6V ~ 3A smart charger, Input 100-240V 50/60HZ.

Display

2.4" Portrait Color Display(BAFANG DPC018), IP65 Waterproof.

Lights

None; rear reflector.

Wiring

Water resistant connectors and wiring harness.

BICYCLE COMPONENTS

Frame

6061 aluminum; Frame Size: 27.5" * 18".

Brakes

ZOOM 180MM front(right) and 160MM rear(left) hydraulic disc brakes.

Brake Levers

ZOOM(HB-875).

Tires

27.5" * 2.8" Maxxis(M349), tire pressure marked on sidewall.

Fork

Air suspension alloy fork, adjustable.

Rear Suspension

Spring suspension(HLT-100).

Chain

KMC(E9S) Chain for mid-drive motor.

Crank Set

BAFANG(CW B1.21) 38T * 170MM.

Shifters

Shimano(SL-M2010-9R) 9-speed.

Derailleur

Shimano(RD-M2000) 9-speed.

Freewheel

Shimano(CS-HG200-9) 9-speed, 11-32T.

Grip

Comfort rubber ergo grips.

Handlebar

ZOOM(MTB-AL-320BT)Rise handlebar.

Pedals

Wellgo(B087B) aluminum pedals with reflectors, polymer bearing.

Headset

Intergrated threadless headset.

Rack

None.

Kickstand

Aluminum leg with durable plastic cover, adjustable.

Fenders

None.

Saddle

Comfort leather saddle.

Rims

Aluminum 32H Spoke wheel.

Seatpost

Aluminum seapost with clamp.

Bell

None.
